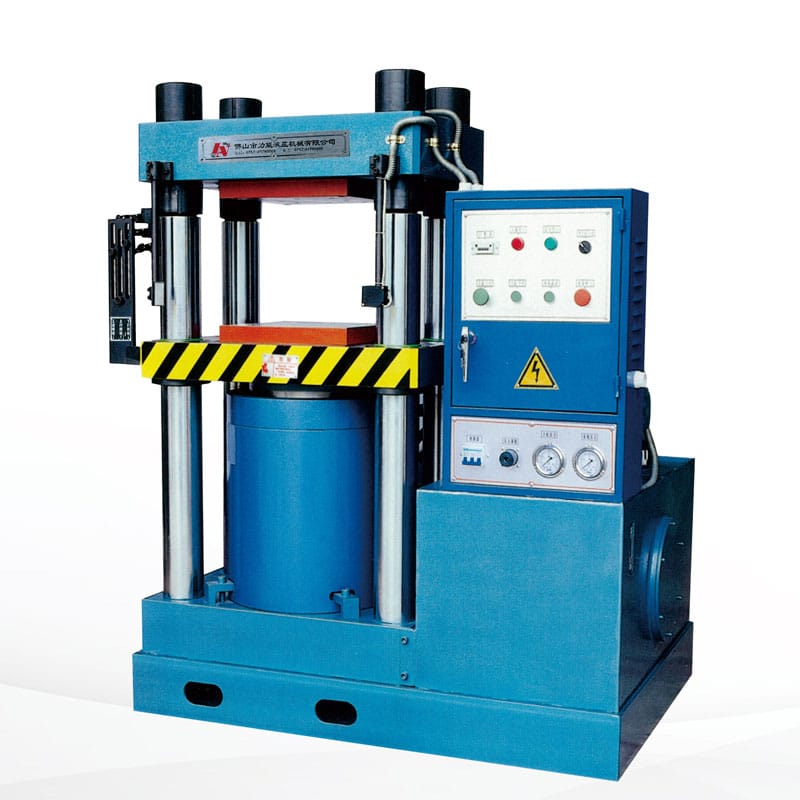

LN33 Four Column Upward Moving Hydraulic Press
Machine overview
Designed for precision forming.
The LN33 series four column and upward moving hydraulic press is suitable for forming products in industries such as hardware, electrical appliances, watch straps, watch cases, grinding wheels, plastic rubber, embossing, and re molding. It is also suitable for other precision products that rely on mold pressing and forming, such as hard alloy products, grinding wheel products, brake pads, etc. Functions such as pressure maintaining and material returning can be added according to customer needs.
Built for the process
Machine features
- The movable crossbeam has a two-stage speed. fast upward movement with no load, slow profiling and pressing, fast return travel, and high work efficiency;
- Fast pressing speed after mold closing;
- Automatic counting function;
- The main sealing components are imported products, with a long service life;
- The key electrical components adopt well-known brands from Europe, America, and Japan, with high working reliability;
- The hydraulic components are selected from internationally renowned brands to ensure good performance;
- The surface of the column and piston rod are treated with medium frequency and plated with hard chromium;
- Equipped with infrared protection device for safer operation;
- Centralized lubrication system to extend the service life of the machine;
- Multiple working modes : fixed stroke and constant pressure options for the main cylinder, and options for using or not using the material (optional).
Where it works
Applications
The LN33 series four column and upward moving hydraulic press is suitable for forming products in industries such as hardware, electrical appliances, watch straps, watch cases, grinding wheels, plastic rubber, embossing, and re molding. It is also suitable for other precision products that rely on mold pressing and forming, such as hard alloy products, grinding wheel products, brake pads, etc. Functions such as pressure maintaining and material returning can be added according to customer needs.
Model comparison
Technical specifications
Compare the published model parameters below. On smaller screens, scroll the table horizontally. Confirm your final configuration with Lineng before ordering.
| Project | Unit | Parameter | |||||
|---|---|---|---|---|---|---|---|
| LN33-100 | LN33-200 | LN33-300 | LN33-500 | LN33-1000 | |||
| Nominal pressure | KN | 1000 | 2000 | 3000 | 5000 | 10000 | |
| Rated working pressure of hydraulic system | Mpa | 20 | 22 | 24 | 25 | 26 | |
| Maximum stroke of workbench | mm | 160 | 160 | 160 | 160 | 150 | |
| The maximum distance between the workbench and the upper and lower planes of the beam | mm | 420 | 450 | 450 | 450 | 450 | |
| Effective area of workbench | mm | 420×420 | 520×520 | 600×600 | 700×700 | 920×920 | |
| Workbench lifting speed | mm/s | 190 | 190 | 190 | 150 | 100 | |
| Motor power | KW | 5.5 | 5.5 | 5.5 | 7.5 | 22 | |
| Overall dimensions | About | mm | 1450 | 1120 | 1300 | 1420 | 1600 |
| Around | mm | 970 | 1200 | 1330 | 1440 | 1750 | |
| High | mm | 1450 | 1465 | 1910 | 2240 | 2800 | |
| Total weight of the entire machine (approximately) | t | 2 | 3.5 | 4.8 | 8.8 | 17 | |
