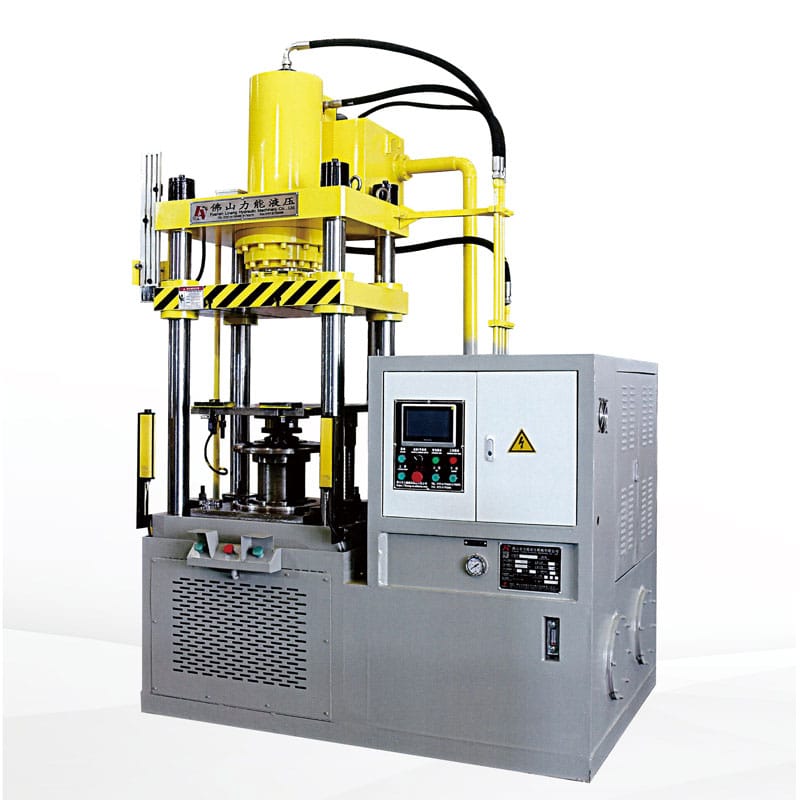

LN32 Four Column Universal Hydraulic Press

Machine overview

Designed for universal forming.

Series LN32Manufacturer Lineng

The LN32 series four column universal hydraulic press is suitable for pressure processing and forming of various plastic materials, such as shaping lmprinting, shallow stretching, edge cutting, etc., calibration of materials and semi-finished products, as well as various assembly processes such as pressing. F unctions such as pressure maintaining and materialreturning can be added according to customer needs.

Request a configuration View specifications

Built for the process

Machine features

The movable crossbeam has two sections of speed, fast descending without load, slow profiling and pressing, fast return, and high work efficiency;
Automatic counting function;
The main sealing components are imported products, with along service life;
The key electrical components adopt well-known brands from Europe，America, and Japan, with high working reliability;
The hydraulic components are selected from internationally renowned brands to ensure good performance;
The surface of the column and piston rod are treated with medium frequency and plated with hard chromium;
Equipped with infrared protection device for safer operation;
Centralized lubrication system to extend the service life of the machine;
Can be configured according to customer needs for upper feeding or lower feeding;
Multiple working modes: fixed stroke and constant pressure options for the main cylinder, and options for using or not using the material (optional).

Where it works

Applications

The LN32 series four column universal hydraulic press is suitable for pressure processing and forming of various plastic materials, such as shaping imprinting, shallow stretching, edge cutting, etc., calibration of materials and semi-finished products, as well as various assembly processes such as pressing. Functions such as pressure maintaining and material returning can be added according to customer needs.

Model comparison

Technical specifications

Compare the published model parameters below. On smaller screens, scroll the table horizontally. Confirm your final configuration with Lineng before ordering.

LN32 technical specifications
Project		Unit	Parameter
Project		Unit	LN32-25	LN32-40	LN32-50	LN32-65	LN32-100	LN32-200	LN32-300	LN32-500
Nominal pressure	KN	250	400	500	650	1000	2000	3000	5000
Maximum stroke	mm	350	350	350	450	500	160	160	160
Fast forward speed	Mm/s	380	380	380	340	192	192	238	238
Working speed	Mm/s	20-48	17-33	14-30	16-30	10-19	5-12	4.5-12	3-7.8
Slider return speed	Mm/s	360	330	270	300	200	200	≥250	≥250
Maximum enclosed height	mm	600	600	650	700	700	500	500	500
Effective area of workbench	mm²	380×450	380×450	450×500	540×580	540×580	540×580	590×600	680×700
Motor power	KW	5.5	7.5	7.5	11	11	11	15	15
