LNY-T30 · Drum recycling
LNY-T30 Oil Drum Baler
Machine overview
Designed for drum recycling.
- This machine use hydraulic drive with independent motive structure and electrical
- The air and liquid will be discharged when machine compress,inner with liquid trough to prevent liquid
Built for the process
Machine features
- This machine use hydraulic drive with independent motive structure and electrical system.
- The air and liquid will be discharged when machine compress,inner with liquid trough to prevent liquid pollution.
- It’s suitable for compress oil drum, paint drum and other kinds of drums (50-200L) to reduce the size.
- Be equipped with protective device.
- Adopt England brand sealing parts, improve the life time of oil cylinder.
- Oil pipe joint adopts conical without gasket form, no oil leakage phenomenon.
- Adopt Taiwan brand superposition type valve group.
- Adopt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pump.
Model comparison
Technical specifications
Compare the published model parameters below. On smaller screens, scroll the table horizontally. Confirm your final configuration with Lineng before ordering.
| Hydraulic power | 30tons |
|---|---|
| Bale size | 760*760*(150-900)mm |
| Chamber size | 760*760*1000mm |
| Capacity | 40-50 pieces/hour (200L) |
| Voltage (customizable) | 380V/50HZ |
| Power | 4kw/5.5hp |
| Machine size | about 960*1000*2380mm |
| Machine weight | about 800kg |
| Trade terms | EXW |
|---|---|
| Port of Destination | N/A |
| Delivery time | Within 70-80 days after receiving the down payment |
| Payment term | Pay 30% in advance and 70% before delivery by T/T |
| Warranty time | One year for whole machine |
| Package | Wooden case |
| Hydraulic oil | #46 anti-wear hydraulic, to be prepared by the buyer |

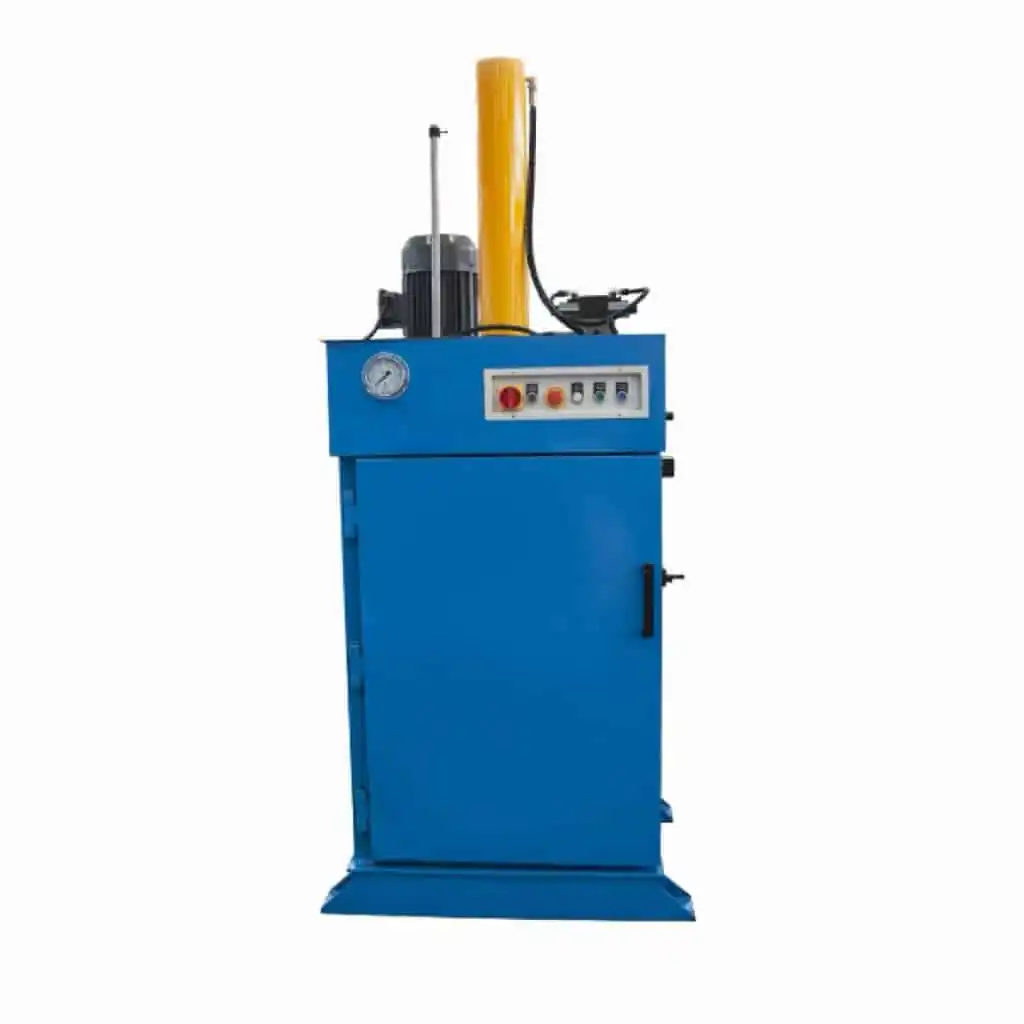

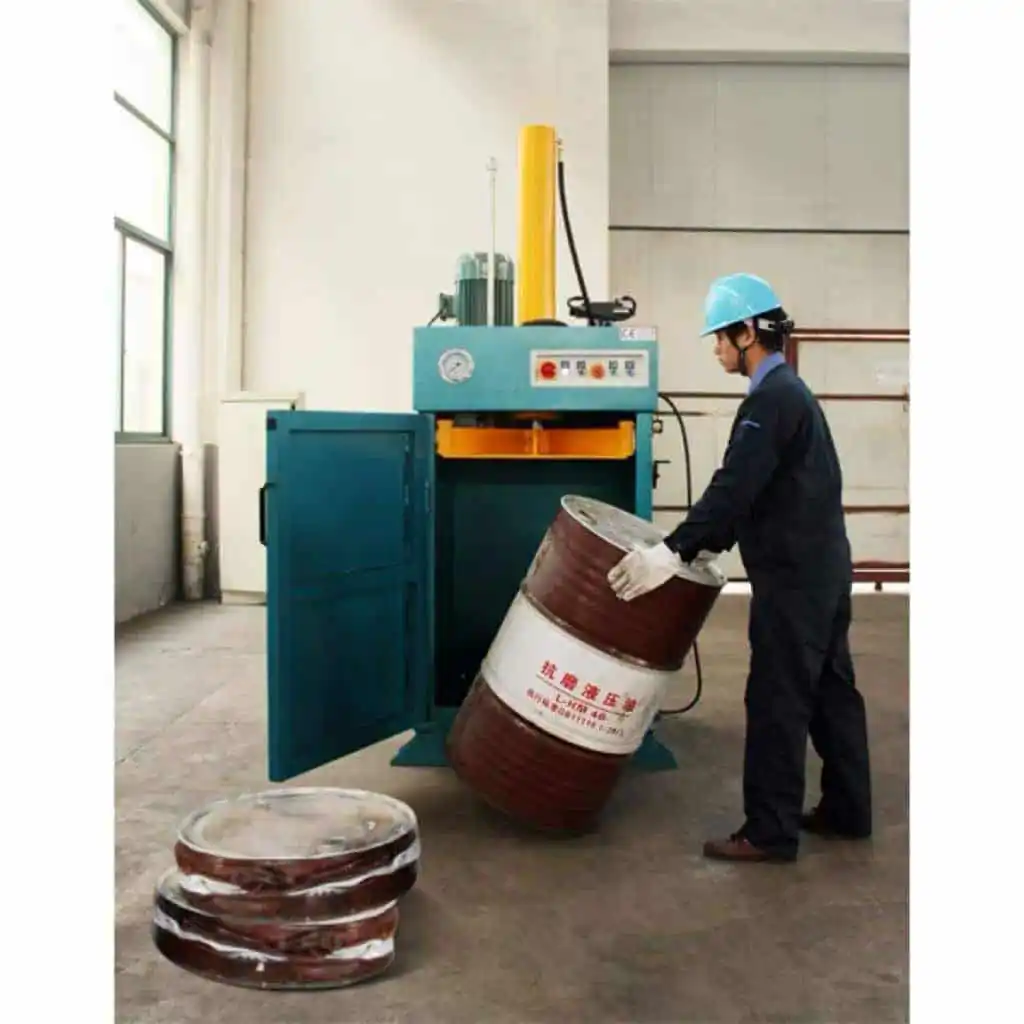

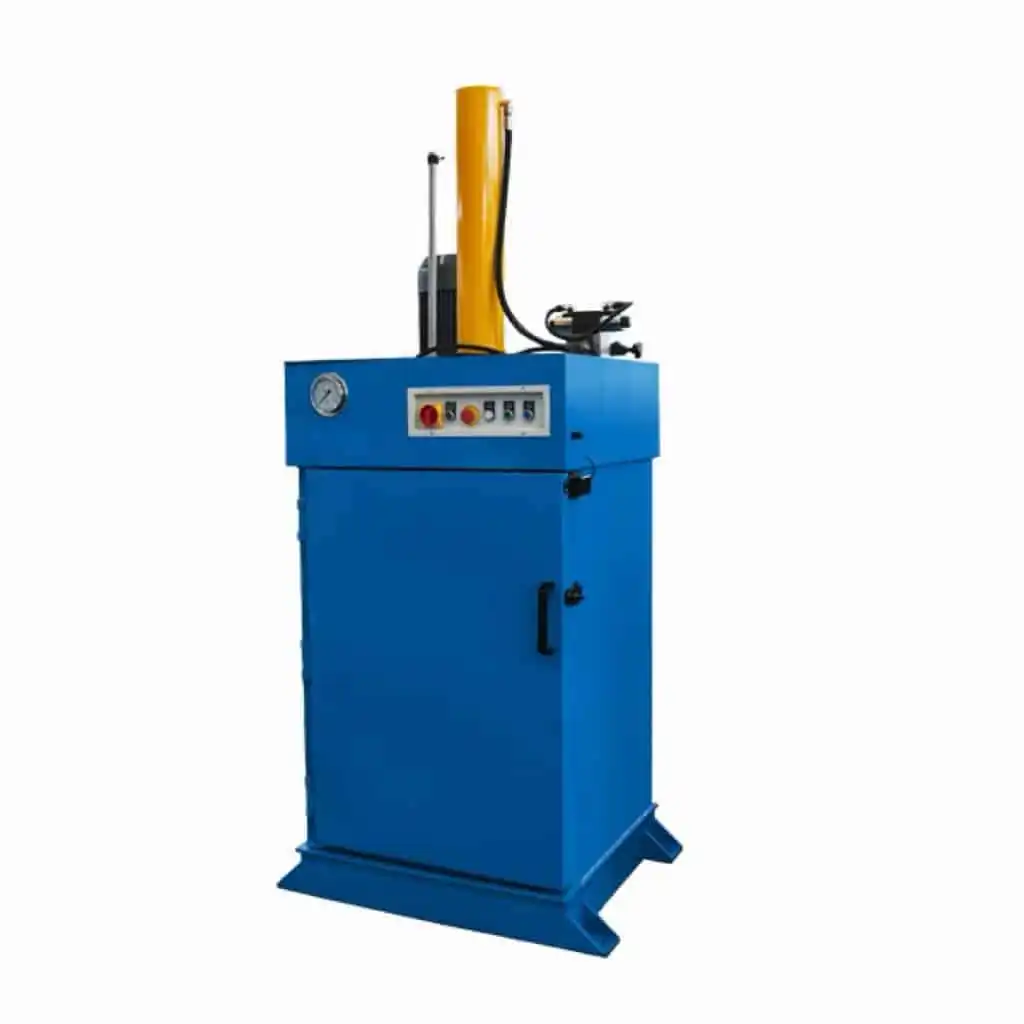

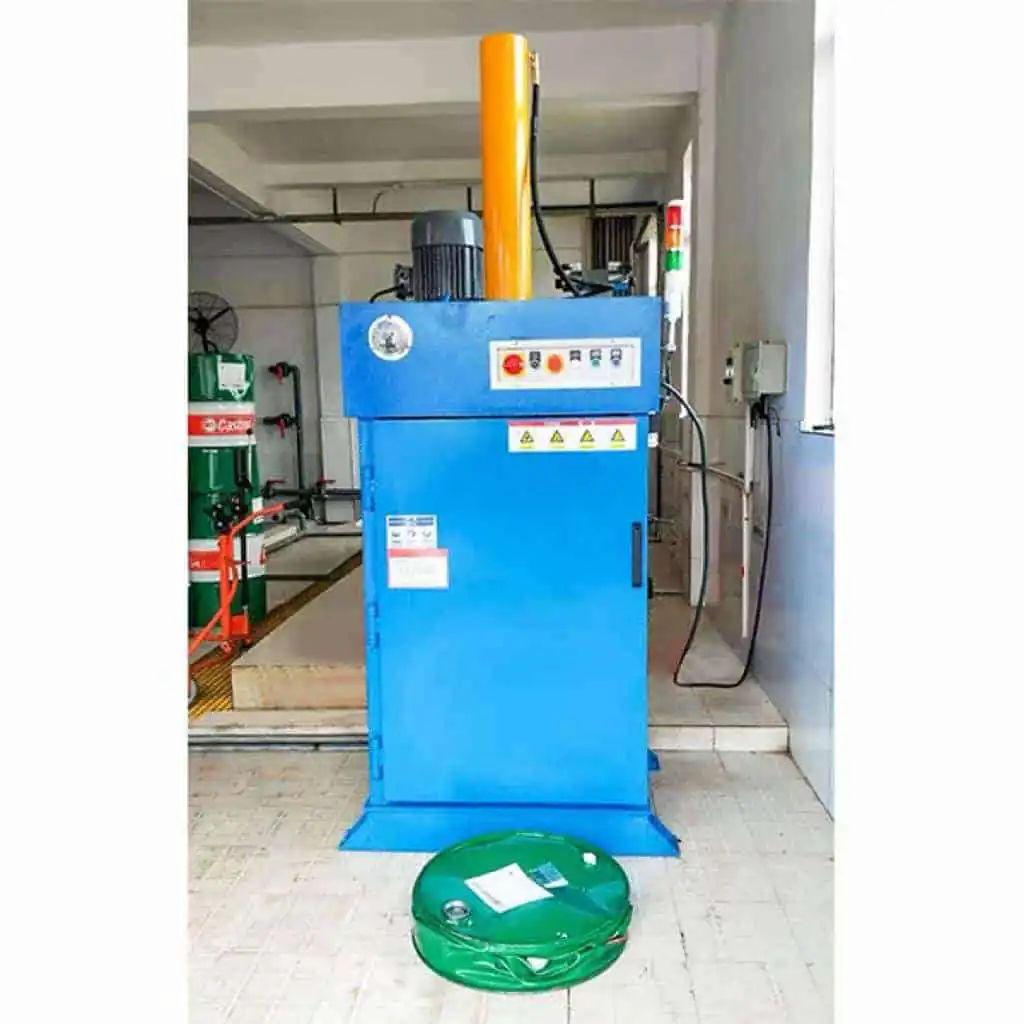

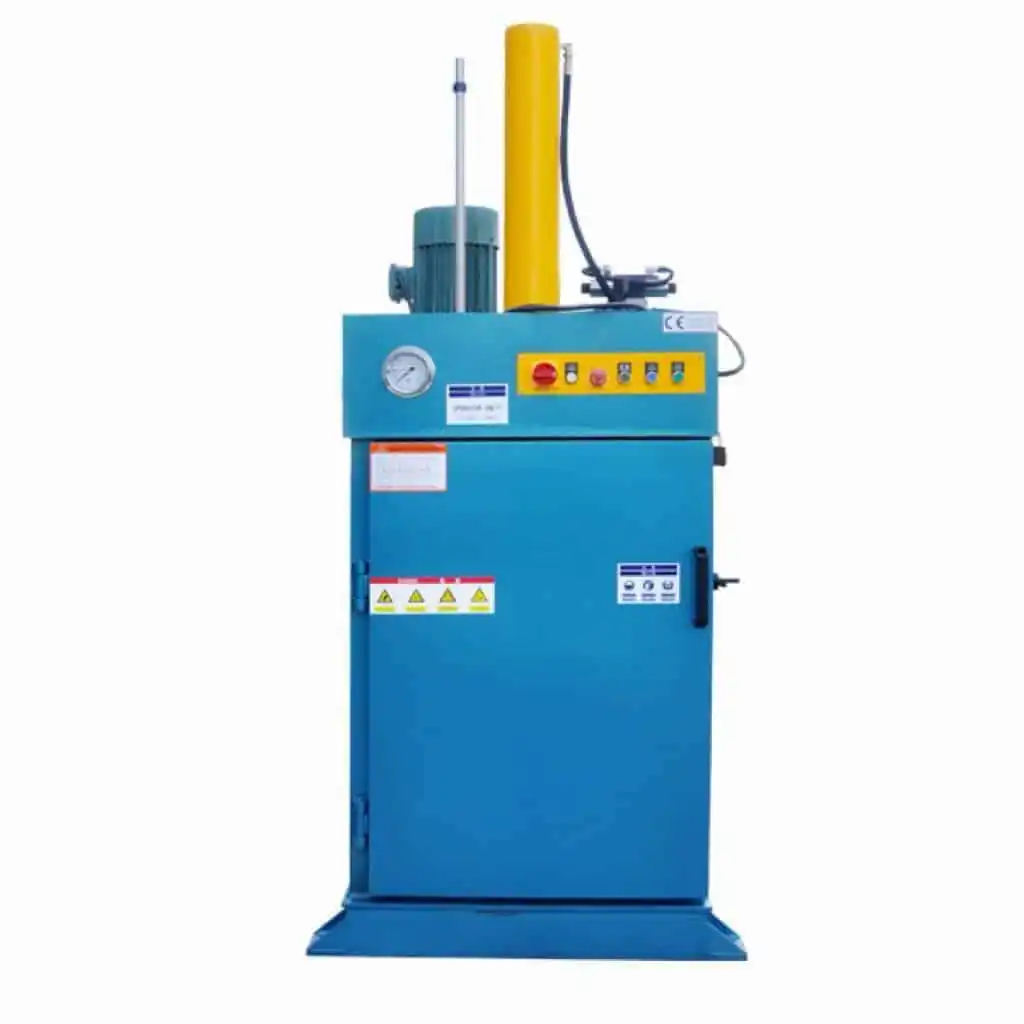

A closer look
